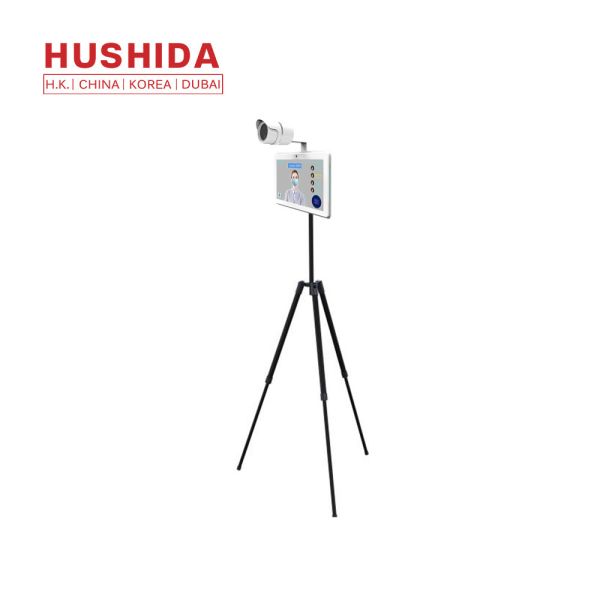

10.1inch face recognition device camera infrared thermometer camera
Product description
AI thermal imaging face temperature detection intelligent terminal (model YBAI-D4-2) is a face detection and temperature measurement product that integrates face contrast recognition heating imaging non-contact temperature measurement module. At this time, the surface temperature of the human body can be measured by thermal imaging. The entire face recognition measurement process is a non-contact experience, and it is accurate, reliable, and efficient without perception. When the temperature of the detected person exceeds a certain threshold, the terminal's signal light will issue an abnormal warning and give a voice reminder.
Product design follows economical, practical, safe and stable design ideas, and provides a complete set of high-quality, advanced face recognition infrared temperature detection management system for intelligent traffic. The system design uses mature technology, stable performance, simple and stylish attendance temperature detection equipment and stability Efficient attendance management, which can meet the current attendance and traffic management needs, and can detect abnormal body temperature.
Download Specification,AI1000-10.1 inch AI Facial Detection Thermometer.p...
Product Features
1. Built-in thermal imaging temperature measurement sensor module, which can quickly measure the temperature of the human face (± 0.3) ℃);
2. The host runs the Android 5.1 operating system and uses the latest face detection and recognition models to quickly capture faces,intelligent face quality judgment, and accurate face comparison and recognition;
3. Integrated design, easy to install, simple and reliable;
4. Signal free breathing light, display light color according to human temperature information.
Application
Suitable for office areas, hotels, office buildings, schools, shopping malls, shops, communities, public services and management projects where face access is required.
Product Specifications
| Face recognition integrated terminal |
| Product Model | HSD-F1-101 |
| Screen Panel | Size | 10.1inch,Full View,170°IPS LCD scren |
| Resolution | 1280*800p |
| Screen Area | 216.96(H)x135.6mm(V) |
| Display Mode | Usual Black,IPS |
| Visual Angel | 85/85/85/85 |
| Contrast | 800 |
| Brightness | 300cd/m2 |
| screen ratio | 16:10 |
| System | CPU | RK3288,Quad-core,Cortex A17,1.8G |
| RAM | 2GB |
| ROM | 16GB |
| OS | Android 8.1 |
| Touch Type | 10 points capactive |
| Network | Wifi | 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | 100M/1000M network port |
| Port | SD card | SD card |
| USB | USB host |
| Micro USB | Micro USB OTG |
| USB | USB For serial |
| RJ45 | Ethernet Port(wuth POE functions) |
| POE | IEEE802.3at/af |
| DC | DC Power, 12V input |
| Headset | 3.5mm Stereo headphone |
| output+speaker |
| Media Play | Video Format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc., |
| The Max support reach to 4K video. |
| Aduio Format | MP3/WMA/AAC etc. |
| Image format | Jpeg |
Certifications
